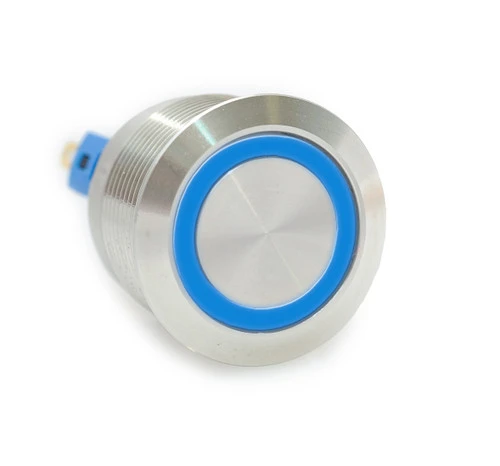

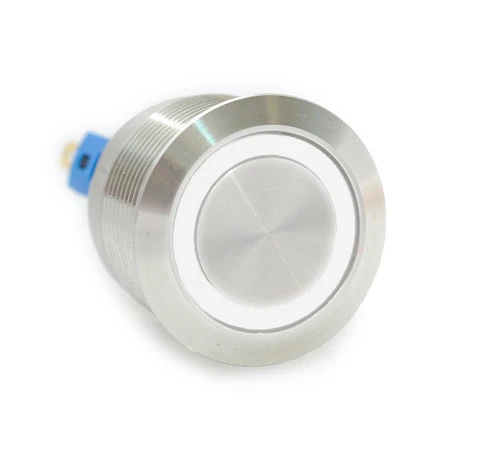

DH221NBSBWN 22 Mm Anti Vandal Sealed Momentary Push Button Switch, Blue Or White Lighting Ability

Product

22 mm Illuminated Momentary Push Button, Blue or White Lighting Ability

• 22 mm
• Momentary Anti Vandal
• 2 amp at 24 VDC
• 2 amp at 125 VAC
• 1 Amp at 250 VAC
•  Blue or White Illumination (Both offered, can choose to wire either or both)
• No resistor in series with LED
• IP65 Sealed
• Stainless Steel Finish
• SPDT
• Single Pole
• Double Throw
• 1 SPST NO – Normally Open & 1 SPST NC – Normally Closed
• Flush Actuator
• Blue or White Ring Illumination
• Solder terminals

Data Sheet: DH221NBSBWN
