DH221LBSRGN 22 Mm Anti Vandal Sealed Latching Push Button Switch, Red Or Green Lighting Ability

Product

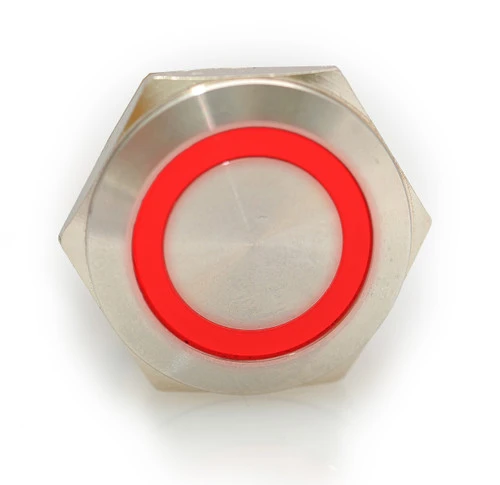

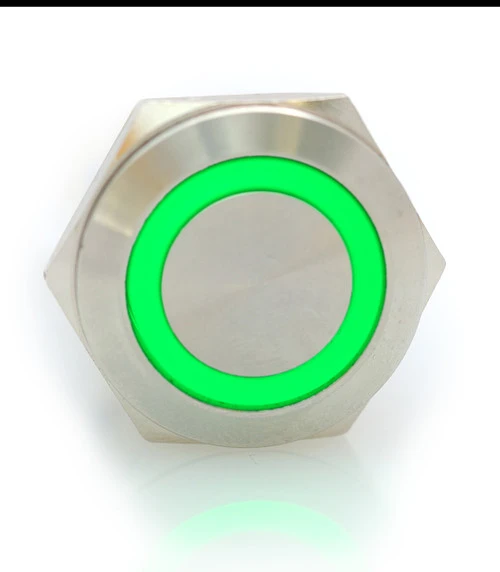

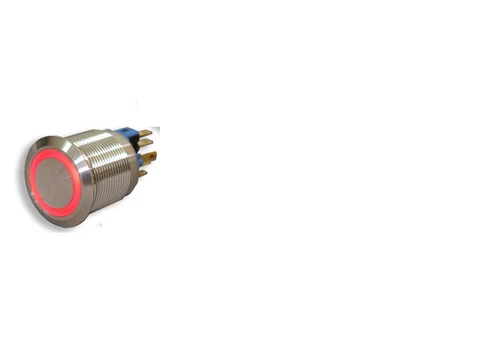

22 mm Illuminated Latching Push Button, Red or Green Lighting Ability

• 22 mm
• Latching Anti Vandal
• Push On, Push Off
• 2 amp at 24 VDC
• 2 amp at 125 VAC
• 1 Amp at 250 VAC
• Red or Green Illumination (Both offered, can choose to wire either or both)
• IP65 Sealed
• Stainless Steel Finish
• SPDT
• Single Pole
• Double Throw
• 1 SPST NO – Normally Open & 1 SPST NC – Normally Closed
• Flush Actuator

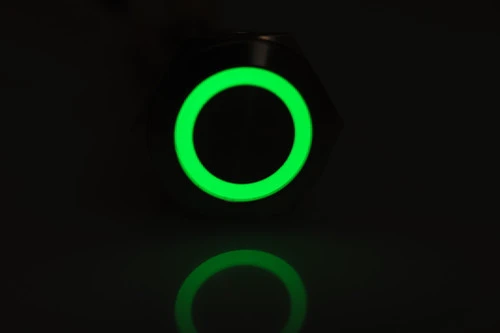

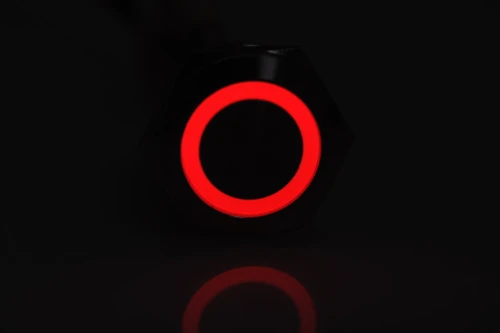

• Red or Green Ring Illumination
• Solder terminals
• No Resistor in series with the LED

Data Sheet: DH221NBSRGN
